Double Shear High Steer Kit for REID Knuckles - Ford Super Duty 05' to Current D60 Dana 60

Double Shear High Steer Kit for REID Knuckles - Ford Super Duty 05' to Current D60 Dana 60

$199.99
SKU:
HSA-801
Adding to cart… The item has been added

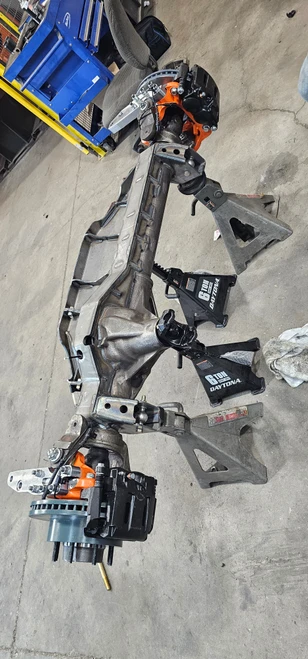

Ford Super Duty 05' to 12.5' D60 High Steer Kit for Reid Knuckles
Better Design, Better Clearance


Upgrading your Superduty Differential to High Steer can be quite difficult without additional machining to the knuckles since the OEM tie rod end bolt axis is 5 degrees misaligned to the bolt axis required to clear the tire / wheel. We machine the REID steering arm to accept a press-in knurled insert that realigns the bolt axies. Additionally we add a 5/8" keyway slot to the mating surfaces of the knuckle and high steer arm. See images and video for a better understanding.

Most modern solid axle equipped trucks and Jeeps are equipped with crossover steering. If you have a lifted Jeep or truck, or do any off-roading, you should strongly consider adding a Ballistic Fabrication high steer kit to your vehicle.  When you lift a solid axle vehicle the alignment of the crossover steering components change, sometimes to drastic angles depending upon the amount of lift added. When the axle flexes to it's limits steering components like ball joints and tie rod ends can fail due to the extreme angles. Measurement from the center of the kingpin to the holes of the arms for the steering Rod End is 8 1/4" and from the double sheer bolt it is 6 7/8"  (HSA-801).

By adding a Ballistic Fabrication Ford Super Duty 05' to 12.5' D60 High Steer Kit for Reid Knuckles to axle, this will move your steering components up and bring the crossover steering system closer to factory alignment.  In addition, by moving the steering components up you will gain much needed clearance that moves the steering out of the way of obstacles on the trail.

Ballistic's Ford Super Duty 05' to 12.5' D60 High Steer Kit for Reid Knuckles are fully CNC machined from Cold Rolled Steel and offer 3/4" thru hole for heim joints / rod ends. They have been zinc plated for corrosion resistance and laser etched with logo and revision details.


What's Included
The Ballistic Full Ford Super Duty 05' to 12.5' D60 High Steer Kit for Reid Knuckles high steer kit comes with the following:

HSA-801
  • One (1) CNC Machined High Steer arms (Universal - Driver and Passenger are the same)
  • Five (5) Hardened Studs and Nuts
  • One (1) Hardened washer (see assembly documents for use)

HSA-801-1

  • Two (2) CNC Machined High Steer arm (Universal - Driver and Passenger are the same)
  • Ten (10) 1/2"-20 Hardened Studs and Nuts
  • Two (2) Hardened washers (see assembly documents for use)

HSA-801-2

  • Two (2) CNC Machined High Steer arms (Universal - Driver and Passenger are the same)
  • Ten (10) Hardened Studs and Nuts
  • Four (4) Hardened washers (see assembly documents for use)
  • Two (2) DOM 1.25" x .250 wall Bolt Sleeves
  • Two (2) 3/4" Grade 8 x 4.0" Hex Bolts and Nylock nuts
  • Two (2) 5/8" zinc plated 1040 steel keys
  • Send us your REID knuckles to be modified with press-in bolt axis corrector and keyways - Shipping not included and will be collected at a later time

HSA-801-3 - Please call for lead times and availability

  • Two (2) CNC Machined High Steer arms (Universal - Driver and Passenger are the same)
  • Ten (10) Hardened Studs and Nuts
  • Four (4) Hardened washers (see assembly documents for use)
  • Two (2) DOM 1.25" x .250 wall Bolt Sleeves
  • Two (2) 3/4" Grade 8 x 4.0" Hex Bolts and Nylock nuts
  • Two (2) 5/8" zinc plated 1040 steel keys
  • Driver and Passenger Modified REID knuckles (D60003FL / D60003FR) with press-in bolt axis corrector and keyways



See Video below!
