10.25 / 10.5 Sterling Truss

$349.99
SKU:
TRU-2021
Adding to cart… The item has been added

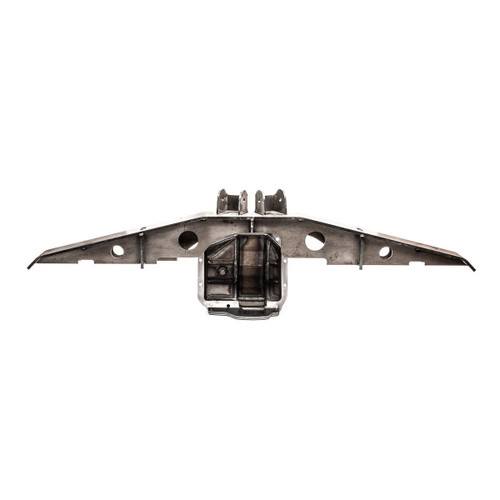

10.5" Sterling Rear Axle Truss
The One Ton Sterling Bolt Truss System
Shave Axles must use 10.25" Master Overhaul Kit, which is the STRONGEST, even regardless if you are running a 10.5" or 10.25" Sterling axle. The Shaved Down Gears start out as 10.25" gear sets and get shaved down to 9.950"


This truss system is designed for 4-link capability on a rear one ton Sterling axles. It serves as a link mount system for a 4 link, as well as greatly strengthens the housing. Take the strength to the next level and add a Ballistic Shave Kit with an integrated truss mount!



The Ballistic Fabrication Sterling Truss is made from 1/4" and 3/8" A36 steel plate and offers amazing protection for your axle!  Don’t get caught on a rock without one!



Features and Benefits

  • 1/4" and 3/8" internal gussets with a close tolerance profile on the main gusset so that it can be easily welded.
  • Add a 3/8" thick diff cover with integration bridge for protection against rocks as well as strengthen the overall system.
  • Upgrade to a full blown Shave kit / Truss system for the ultimate in strength.
  • Includes ALL hardware for tie-ins
  • Includes 2.63" width upper brackets for Ballistic joints with 9/16" bore or equivalent
  • Truss / Diff Cover Tie-in can be easily removed during fabrication process if not desired

Truss is shipped non-assembled and is not welded.



Product Type:
Motor Vehicle Transmission & Drivetrain Parts
