14 Bolt Rear Truss System

$399.99
SKU:
TRU-1207-01
Adding to cart… The item has been added

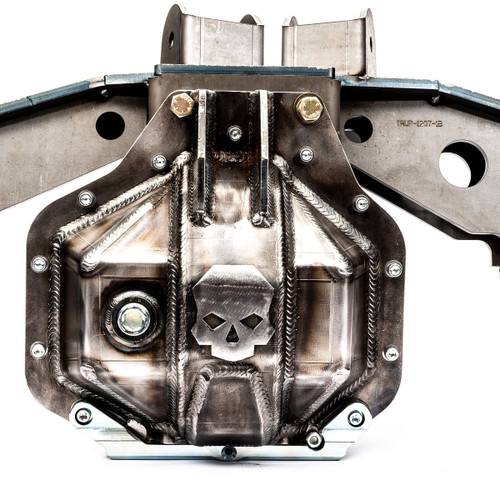

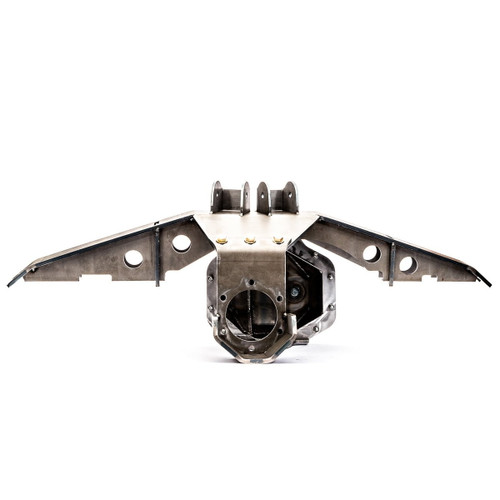

Corporate 14 Bolt Rear Axle Truss
The Ultimate 14 Bolt Truss System
Revision 2 released 4.10.17

This truss system is designed for 4-link capability on a rear 14 Bolt axles. It serves as a link mount system for a 4 link, as well as greatly strengthens the housing. These 14 Bolt housings are notorious for spinning tubes and fracturing the original casting. Take the strength to the next level and add a Ballistic Differential cover with an integrated truss mount!



The Ballistic Fabrication 14 Bolt Truss is made from 1/4" and 3/8" A36 steel plate and offers amazing protection for your axle!  Don’t get caught on a rock without one!



Features and Benefits

  • Integrated 3/8" thick pinion guard INCLUDED

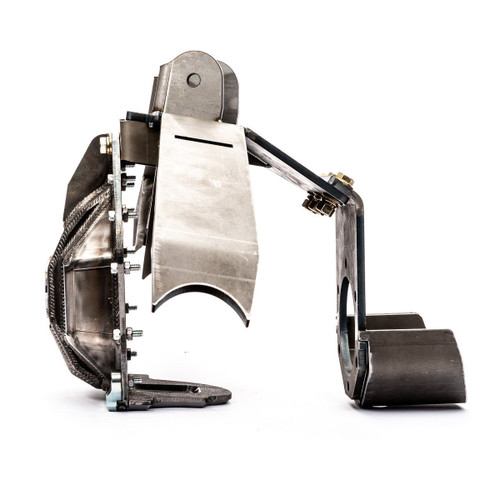

  • Three Piece design so that the diff cover and pinion can be easily removed for repair and maintenance.
  • 1/4" and 3/8" internal gussets with a close tolerance profile on the main gusset so that it can be easily welded.
  • Add a 3/8" thick diff cover with integration bridge for protection against rocks as well as strengthen the overall system.
  • Upgrade to a full blown 14B Shave kit / Truss system for the ultimate in strength.
  • Includes ALL hardware for tie-ins
  • Includes 2.63" width brackets for Ballistic joints with 9/16" bore or equivalent
  • Overall width is 46"

SAE Standard was made 77'-87' and comes standard with disk brakes. The Metric 14 Bolt is 88'-2000 and comes with a ribbed main casting and disk brakes

Truss is shipped non-assembled and is not welded.

14 Bolt Truss Installation Instructions

    Product Type:
    Truss
