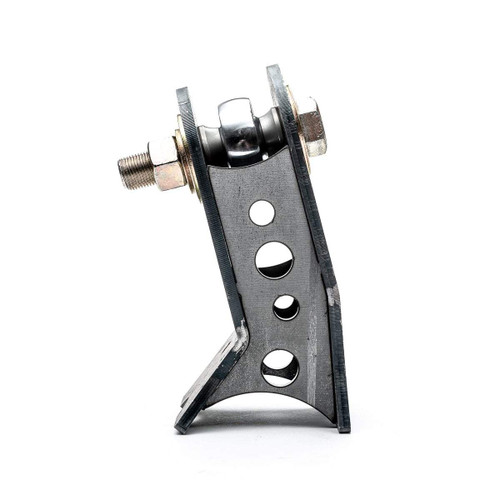

5", 6", 7" Separations from center of axle tube. 2.5, 2.75, 3.0, 3.125, 3.25, 3.5, 4.0 Axle Tube Sizes. 1.75 Mounting Width with 3/4" Hole. CNC Laser cut on one of our 2 in house lasers from 1/4" mild steel and CNC bent on our 5-axis Trumpf Press Brake. Comes unassembeled and will require welding. Designed with relief cuts to not trap mud and debris in the bracket promoting rust. Bracket can be ground to fit for angular offsets. Setup for 3/4 Rod Ends with Standard Spacers or 3/4-7/8 Rod Ends with Standard Spacers. Will work for Right hand or left hand Trac Bar applications. Custom sizes are also available however your order must be phoned in.
What's Included
- One (1) Unwelded Bracket
- Rod Ends/Hardware Not Included

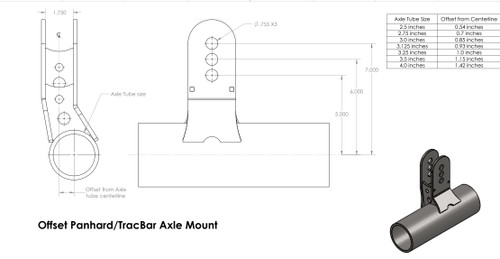

Dimensions shown in pictures
- Product Type:
- Offset Tracbar Bracket
