Adjustable Panhard / Tracbar Frame Mount

Adding to cart… The item has been added

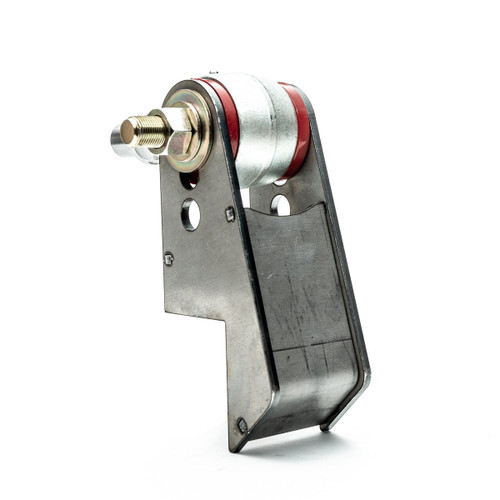

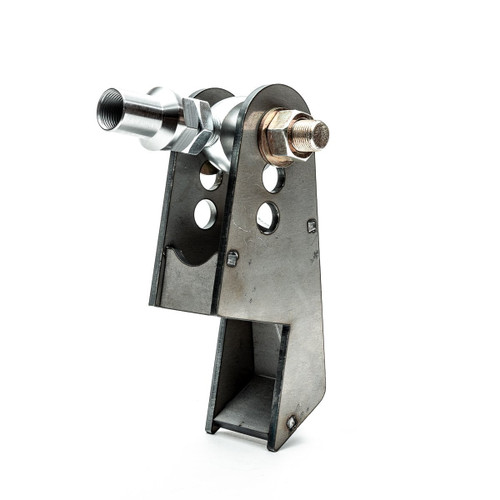

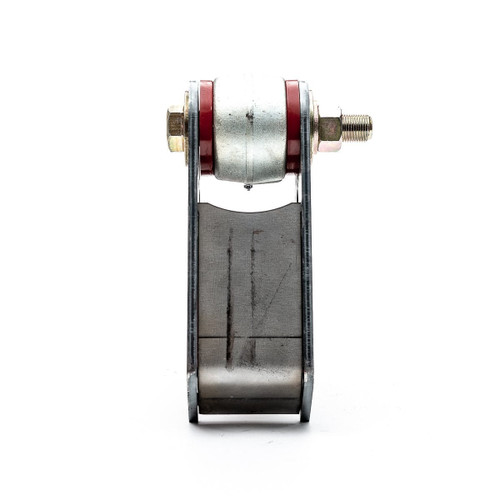

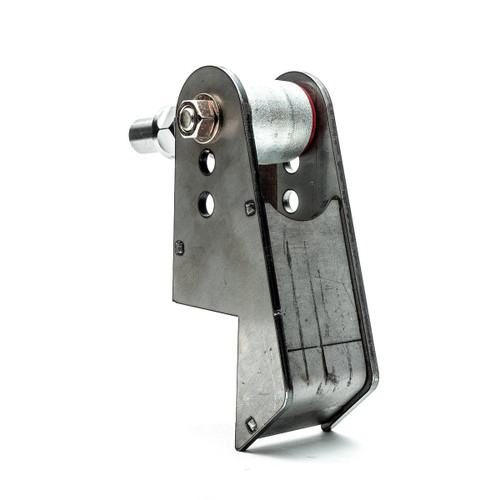

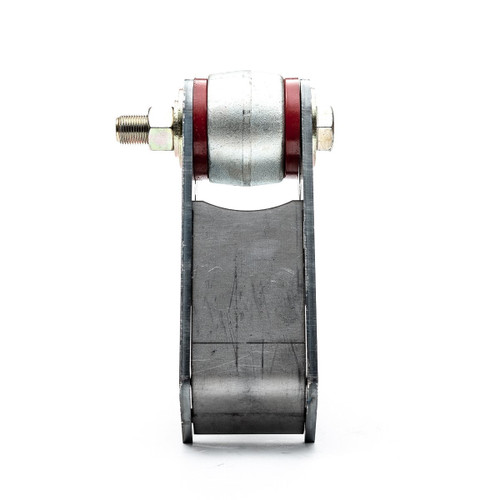

Adjustable Panhard / Tracbar Frame mount
CNC Laser Cut and Press Formed

Provides a 2.5", 3.5", and 4.5" drop from the bottom of the frame to the center of the bolt hole. Great if you are unsure of the best mounting drop from your frame for proper geometry. For use mounting to the inside of the frame,. but can be used on the outside without side gusset. CNC Press formed and fully boxed for ultimate strength. Mounting width is 1.75"with 3/4" bolt hole for use with a  XM-12 or XM-12/14 rod end with standard 3/4" spacers. Also available with a 2" and 2.63" mounting width with 9/16" holes. Cut from .250" A50 plate steel. Includes ONE bracket.

What's Included
  • One (1) Bracket
  • Rod End/Bushing/Hardware Not Included


Product Type:
