Description
The ADS Direct Fit 3 in. Adjustable Reservoir Race Coilovers - Front delivers 6 IN of usable stroke (collapsed 20.975 IN, extended 26.956 IN), purpose-built for demanding off-road and desert terrain.
Take control of front ride height and damping with ADS 3.0" race-bred coilovers featuring external reservoirs for thermal stability and wide adjustability. Engineered as a bolt-on system for the 2010-2014 Raptor, they deliver precise wheel control, improved bottom-out resistance, and composed high-speed performance while offering 1-3 inches of lift for tire clearance and stance-built from premium materials to survive heavy off-road use.
Key Specs
- Stroke: 6 IN
- Collapsed Length: 20.975 IN
- Extended Length: 26.956 IN
- Body Diameter: 3 IN
- Shaft Diameter: 0.875 IN

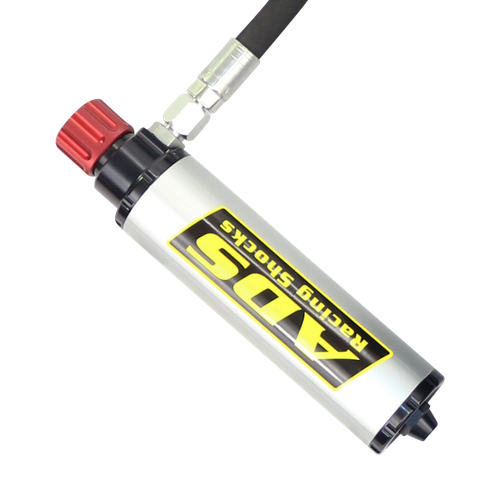

- Reservoir: Remote
- Spring Rate: 650 PPI
- Part Number: 300-10RTF-A00
Features & Benefits
- Large Bore 3.0 shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
- Electric zinc plated steel shock body with crystal clear Cerakote® for durability and corrosion resistance.

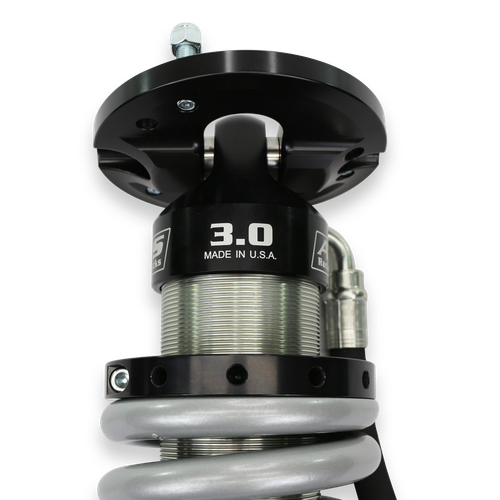

- Black anodized billet aluminum top and bottom caps
- Hard-chrome plated steel shock shafts for superior corrosion resistance

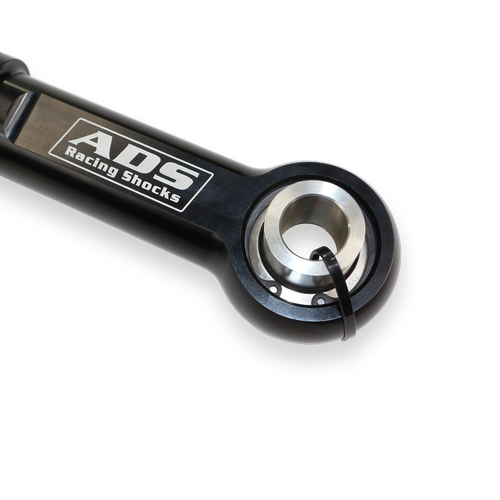

- Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance
- Shaeffer's high grade temperature stable synthetic hydraulic fluid
- Fully rebuildable
- Made in America
Fits: 2010-2014 Ford F-150.
Hand-Built. Desert-Tested. Designed, machined, and assembled in Tucson, Arizona by ADS Racing Shocks.
