HD 90 Degree Tabs

Adding to cart… The item has been added


Heavy Duty 90 Degree Tabs
CNC Laser Cut
Heavy Duty tabs for mounting at 90 degrees off of square tubing. Great for mounting links on our axle trusses. Semi-wrap around design ensures a better distribution of the weld resulting in higher strength. Laser cut in-house from 3/8" steel with a 9/16" bolt hole diameter. This tab can easily be drilled out for larger bolts. Includes two pieces. Choose from SHORT, MEDIUM, or LONG. All tabs are 2" wide.
Top of tab to center of hole is 1" on all three sizes.

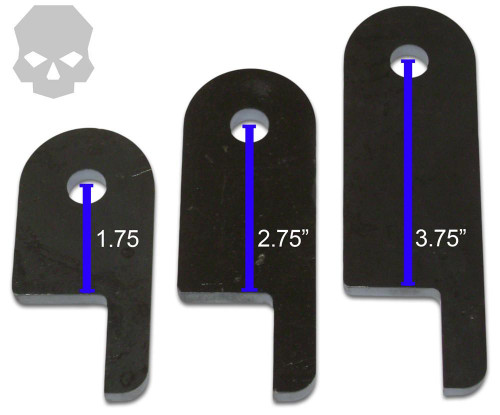

 Center of hole to inside ledge: short 1.75, medium 2.75, long 3.75
Total length 4.25, 5.25, 6.25
What's Included
Two (2) HD 90 Degree Tabs
Product Type:
Link Bracket
