Sterling 10.5" / 10.25" Shave Kit
With 4140 Hardened Bolt Protector
Welded 3/8" and 1/4" Steel
Must use 10.25" Master Overhaul Kit, which is the STRONGEST, even regardless if you are running a 10.5" or 10.25" Sterling axle. The Shaved Down Gears start out as 10.25" gear sets and get shaved down to 9.950"
It's finally here, the ultimate Sterling 10.5" axle upgrade. Kit has been tested, perfected and is now offered with the HARDENED bolt protector block, machined from 4140 Chromoly and then heat treated and zinc plated.
The Sterling Shave kit allows for 5.3" of clearance from the bottom of the axle tube after removing almost 1.5 inches of casting material. This is equal to buying 3" larger diameter tires without the added rotational mass and larger additional expense.
Large 4140 Billet Bolt Protector plate provides protection against rocks while the laser cut from 3/8" and 1/4" plate steel cover adds the much needed protection against rocks. Steel plate is CNC press formed with 15 different bends to create a geometrically strong cover. The CNC bent cover is then welded inside and out, then CNC machined flat and holes machined for a great fit.
_____________________________________________
- Pre-Turned Ring & Pinion Sets - 4.56, 4.88, 5.13, 5.38 - $579.99
Ring gear machining is required. Ballistic Fabrication will provide machine work to ring gear for $105
Machining and Welding Service runs about 2-3 week lead time. The cost is $780 per differential; includes sand blasting, machining and welding of shave kit. We can remove your stock brackets and disassemble your entire unit for an additional $390.
Email to order.
_________________________________________________
What's Included

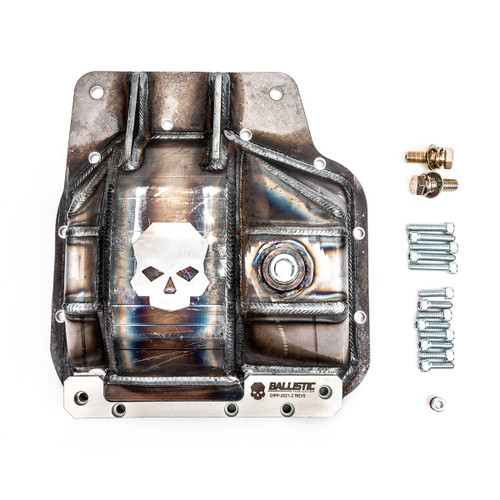

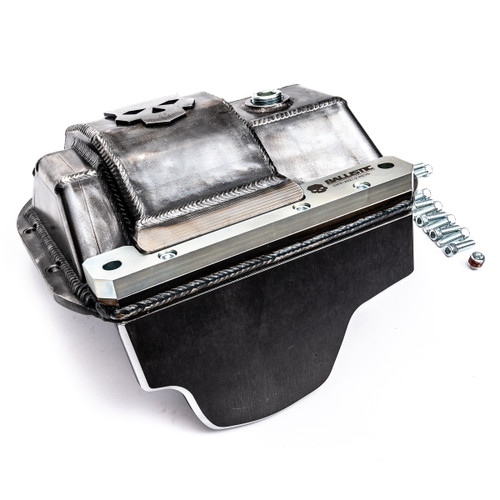

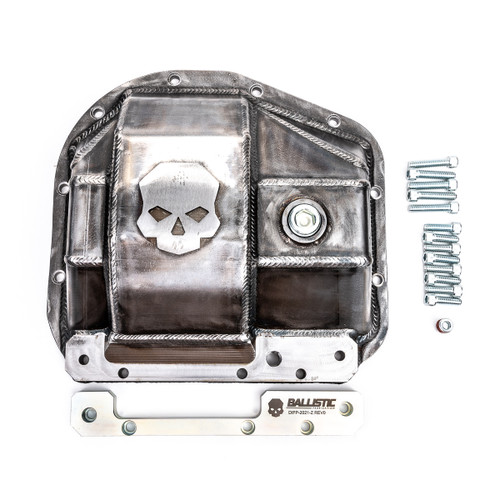

- One (1) Differential Cover 3/8" and 1/4" Steel Plate
- 4140 Chromoly Heat Treated Bolt Protector
- All Necessary Installation Hardware
- Zinc Plated 3/4" Fill Plug
- Zinc plated Magnetic Drain Plug (neodymium)
- 1/2" Thick Bottom Plate
