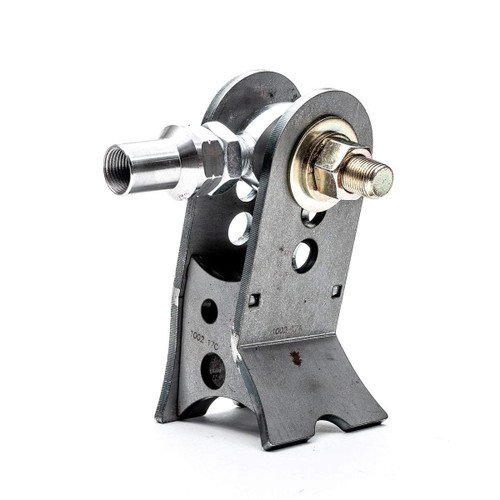

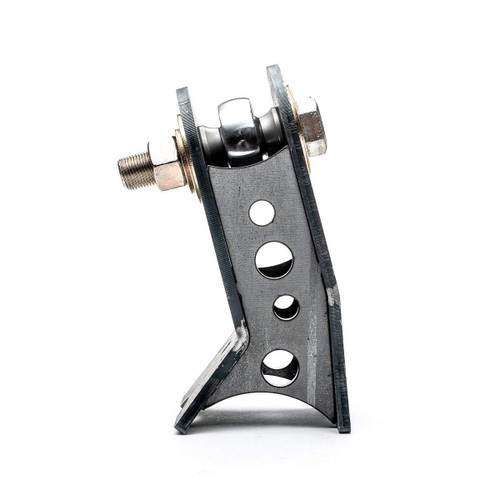

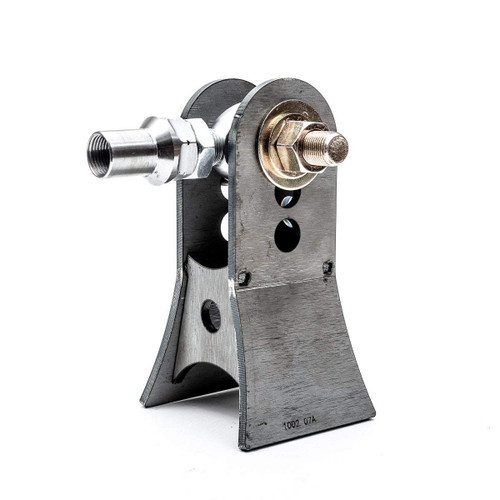

TrackBar / Panhard Bar Options - Complete Kit may be used on almost any vehicle equipped or in need of a TrackBar / Panhard Bar. Complete kit includes all brackets, tubing, adapters, joints and hardware.
What is included:
Qty-1 Frame Bracket
Qty-1 Axle bracket of your choice (Straight or Offset)
Qty- 1 7/8 Rod End (For axle side bracket) with Jam Nut and Tube Adapter
Qty-1 Bushing or Rod End of your choice for frame side (2.63" Poly Bushing, 2.5" Poly Bushing, 7/8 Heim Joint) with Jam Nut and Tube Adapter.
Qty-1 54" Length of 1.50"-.250" wall Dom Tubing (1.50" OD x 1.0" ID)
Qty-2 Bolts Kits to accommodate bracket and joint selection. Bolts will be Grade 8 Bolts.
Notes:
-For best STREET applications results we recommend going with the 2.63" Poly Bushing Kit.
-All Axle Brackets will come with 7/8 Heims Joints Only.
- All Heims selected will come with the required High Misalignment Spacers to accommodate the brackets.
- All 2.63" Poly Bushings will come with 3/4" Grade 8 Bolts to accommodate the brackets provided.
- 2.5" Poly Bushing will come with all 9/16" Bolts along with 9/16 High Misalignment Spacers to accommodate the brackets provided. We will also provide Qty-2 3/4 - 9/16 Weld Washers to fit on the outside holes of the Axle Bracket.
- This kit includes Hex Tube Adapters Qty-1 RH and Qty-1 LH making it fully adjustable. Make sure the Bushing or Heim of your choice is NOT threaded into the tube adapter when welding. It can result in damaged threads!!!
- Axle and Frame Brackets are made from 1/4" Steel.
