3.0 in Forged Ultra Duty Ballistic Joint

Adding to cart… The item has been added

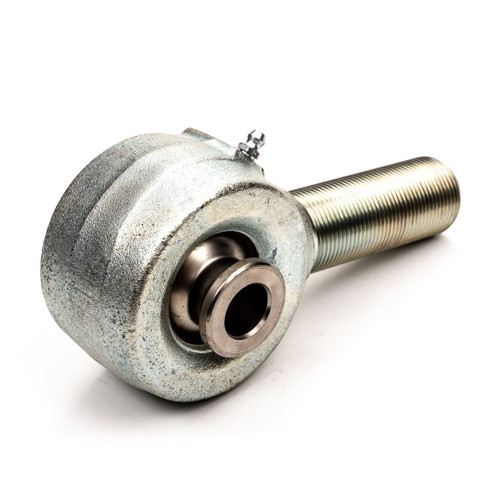

3.0" Forged Ultra Duty Ballistic Joint
The Only Joint on the Market with a Lifetime Warranty
100% Machined in the U.S.
using Domestic and Imported Materials
Joint comes fully assembled

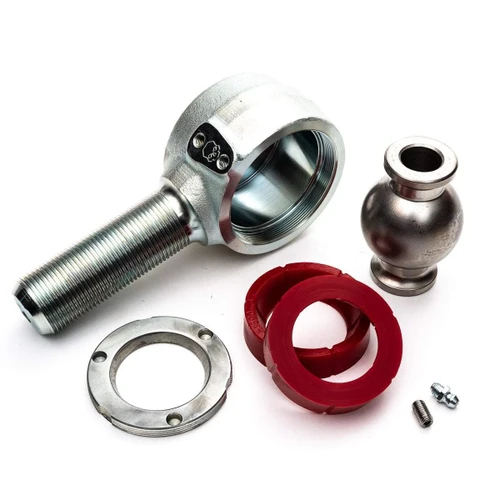

  • 4140 Hardened Chromoly Housing and Spanner Nut
  • Hardened 416 Stainless Steel Ball
  • Polyurethane Races manufactured by Prothane
  • Adjustable Spanner nut to tighten in case of wear      *LIFETIME WARRANTY*
The Massive 3.0" rebuildable Ultra Duty Ballistic Joint is built to withstand extreme punishment!  Its extra large 3/4" bore (bolt hole) is large enough to handle heavy torque while the huge 3.0" diameter, .485" wall (nearly 1/2" thick!) housing accommodates 34 degrees of total misalignment.
The giant 2" hardened Stainless Steel ball distributes the forces over a larger surface area which translates into a better ride and longer life as well as superior strength and durability.
General Recommendations:
For use with high horse power vehicles
Anything over 7,500 lbs
High diameter size tires
Our entire line of 3.0" Ballistic Joints feature thermoset cast Polyurethane races built exclusively to our specs from Prothane. These races won't deform under load and provide a smooth bearing surface for a noise free ride. These Ballistic Joints are fully greaseable and rebuildable.
What's Included
Assembled 3.0" Forged Ultra Duty Ballistic Joint
    Warranty Information
    Lifetime Warranty on all shank housings against breakage.
    After first use we highly recommend readjusting spanner nuts.
    Product Type:
    Ballistic Joint
