Forged Chromoly 2.375 in Ballistic Joint

Adding to cart… The item has been added

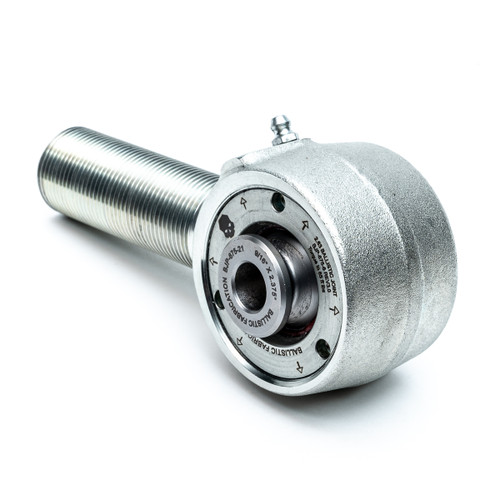

2.375" Ballistic Joint
The Only Joint on the Market with a Lifetime Warranty*
100% Machined In the U.S.
(Using Domestic and Imported Materials)
All Ballistic Joints ship Fully Assembled!
The 2.375" Forged Chromoly Ballistic Joint is made to be the ultimate in durability and ease of use.  The Ballistic Joint has been manufactured and designed for military use and quality!  Our forgings are made from 4140 chromoly steel, which is nearly twice as strong as the 1045 mild steel steel used in competitive joints.
Using a proprietary Polyurethane Race designed and produced by Prothane as well as a 416 Hardened Stainless Steel bearing; the Ballistic Joints are smooth, longer lasting and quieter than ever.  The 2.375" Ballistic Joint uses no snap rings to retain the races; instead a retainer is forged into the housing and on the opposite side of the Ballistic Joint it uses a Hardened 4140 Chromoly threaded spanner nut and set screw for the strongest hold available, an industry first!
The Ballistic Joint housing is forged from solid 4140 chromoly steel and the forging is then quenched, tempered and normalized in a dedicated heat treating facility. This process provides a yield strength of up to 208,000 psi and a tensile strength of up to 238,000 psi.
Material has been added to the grease zerk/set screw area to add greater resistance to splitting, making this issue virtually non-existent!  Any play that might develop over time can be removed simply by adjusting the stainless steel spanner nut for a nearly infinite lifespan.
All forged joints are clear (silver) zinc coated. When combined with the Hardened 416 stainless steel bearing and  Hardened 4140 Chromoly spanner nut, this joint will be around for your next build as well.
What's Included
  • Fully Assembled 2.375" Forged Ballistic Joint
Additional Options
  • Thru Hole Size: 9/16"
  • Shank Size: 7/8", 1.0" or 1.25"
  • Thread Direction: Right or Left Hand
Warranty Information
  • Lifetime Warranty on 1.25", 1.0" and .875" shank housings against breakage.
  • Limited Lifetime Warranty on Polyurethane Races with one free replacement.
Product Type:
Ballistic Joint
