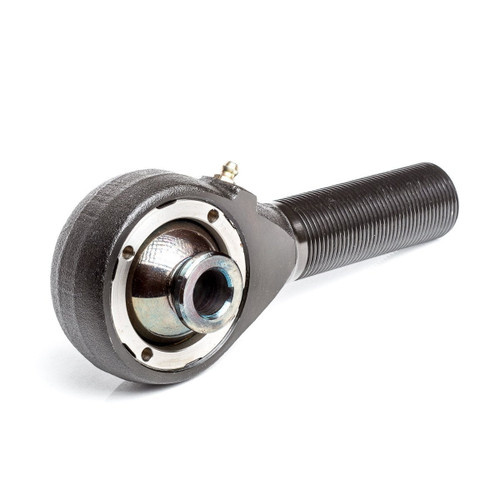

Forged Ballistic Rod End

Machined in the USA using domestic and imported materials
Using the best materials available we have created a rebuildable Chromoly Rod End that offers up to 74 degrees of misalignment using a 9/16" bolt or down to 65 degrees using a 3/4" bolt.
  • 100% rebuildable using solid BRONZE races for longer life and higher strength
  • 4130 Chromoly Heat Treated steel spanner nut
  • 4340 Forged Chromoly housing
  • Bearing is machined from 17-4 PH Stainless Steel, polished to mirror finish then treated to H900 44Rc, then gas nitrided to 68rc surface hardness .005" deep
  • 9/16", 5/8", and 3/4" bores available, all with 2.625" mounting width
  • 74 degrees of total movement with a 9/16" ball
  • Socket and Wrench style assembly tools available (sold separately)
  • 100% machined in the USA using domestic and foreign materials
What's Included
  • 1 Ballistic Rod End
Product Type:
Ballistic Rod Ends
